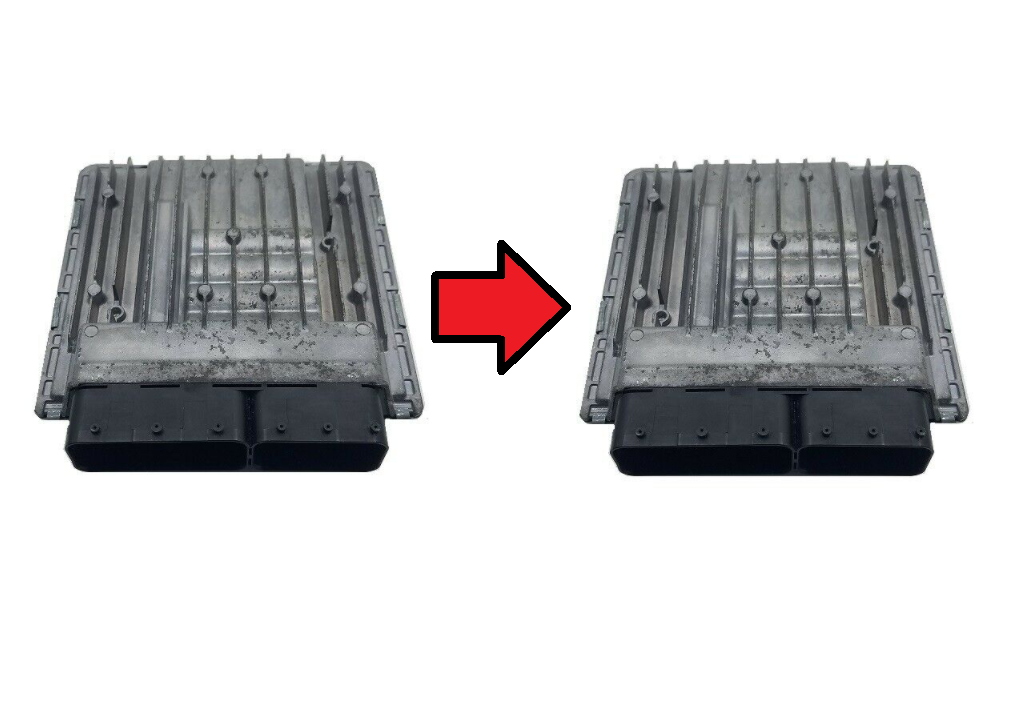

BMW MSD80 MSD81 MSV80 DME ECU Cloning Service | Replacement DME Programming
This is a mail-in DME cloning service for supported BMW vehicles equipped with MSD80, MSD80.2, MSD81, MSD81.2, MSV80, and MSV80.1 DMEs.
We transfer the necessary vehicle-specific data from your original DME into a compatible replacement DME that you provide. The replacement retains the original vehicle's DME data and normal CAS/immobilizer operation, allowing it to replace the original without normal replacement-DME programming or synchronization.
This service is the preferred option when your original DME still communicates and can be read successfully.
When to Use This Service:
- Your original DME is faulty but still communicates and can be read.
- You have a compatible used replacement DME.
- You want to retain the vehicle's normal CAS and immobilizer operation.
- You want the replacement DME programmed using the data from your original unit.
What This Service Does:
- Reads the necessary data from your original DME.
- Transfers the required vehicle-specific data into your replacement DME.
- Retains the original DME's vehicle-specific information and immobilizer synchronization.
- Prepares the replacement DME for installation back into the vehicle.
Important Requirements:
- YOU MUST SEND BOTH DMEs — ORIGINAL AND REPLACEMENT.
- The original DME must communicate and be readable for cloning.
- The replacement DME must be compatible with the original.
- We recommend matching the original DME part number whenever possible.
If you are unsure whether your replacement DME is compatible, send us clear photos of both DME labels before purchasing.
Supported DME / Engine Types:
N54 and N53 Engines
- MSD80
- MSD81
N51 and N52N Engines
- MSV80
- MSV80.1
N43 Engines
- MSD80.2
- MSD81.2
Compatibility is determined primarily by the DME type, hardware, and application, not vehicle model or model year alone.
Original DME Does Not Communicate?
If your original DME is damaged and cannot be read or cloned, our DME immobilizer delete / replacement DME programming service may be a better option for supported applications.
Contact us with your vehicle information and DME part number if you're unsure which service you need.
Why Choose DME Cloning?
- Retains the vehicle's normal CAS/immobilizer system.
- Transfers the original vehicle-specific DME data to the replacement.
- No immobilizer delete is required.
- Ideal for replacing a faulty but still-readable DME.
Don’t See Your Vehicle?
Send us your vehicle information and DME part number for verification. We’re happy to assist!
Common Part Numbers
Common Part Numbers
MSV80
7546143, 7557135, 7565861, 7565862, 7567227, 7567230, 7567362, 7567367, 7569988, 7570376, 7570398, 7573322, 7573323, 7574540, 7574541, 7574544, 7574545, 7575057, 7575058, 7575498, 7575499, 7576297, 7576300, 7577068, 7577069, 7577996, 7577997, 7581123, 7581124, 7583468, 7583470, 7587164, 7587165, 7591709, 7591710, 7594483, 7594484, 7594941, 7594942, 7597091, 7597093MSV80.0
7602220, 7602221, 7605429, 7605430, 7609656, 7609657, 7611280, 7611281, 7614359, 7614361, 7624048, 7624049
MSV80.1
7567609, 7567610, 7569989, 7573332, 7574542, 7574543, 7574546, 7574547, 7575500, 7575501, 7576670, 7576671, 7581126, 7581127, 7581547, 7581548, 7583526, 7583527, 7584309, 7584310, 7587166, 7587167, 7591843, 7591844, 7594485, 7594486, 7597425, 7597426, 7602216, 7602217, 7605423, 7605424, 7609658, 7609659, 7611282, 7611283, 7614362, 7614363, 7624052, 7624053, 7629046, 7639647, 8613002
MSD80
7546141, 7550014, 7565859, 7565860, 7567229, 7567232, 7567491, 7567492, 7567542, 7567543, 7568370, 7568371, 7568842, 7568843, 7569978, 7569979, 7571468, 7571469, 7572063, 7572064, 7572067, 7572068, 7573796, 7573797, 7573863, 7573864, 7574534, 7574535, 7575875, 7575876, 7576719, 7576720, 7576721, 7576722, 7578020, 7578021, 7578441, 7578442, 7583332, 7583333, 7586938, 7586939, 7586940, 7586954, 7588620, 7588621, 7594305, 7594306, 7595235, 7595236, 7596017, 7596018, 7611396, 7611397
MSD81
7578033, 7578034, 7579011, 7579012, 7583324, 7583325, 7585540, 7585541, 7585711, 7585712, 7585889, 7585890, 7586933, 7586934, 7590871, 7590872, 7592080, 7592081, 7593493, 7593494, 7596019, 7596020, 7596021, 7596022, 7600427, 7600428, 7601865, 7601866, 7602118, 7602119, 7604567, 7604568, 7604593, 7604594, 7605662, 7605663, 7608621, 7608622, 7611358, 7611359, 7612455, 7612456, 7614620, 7616431, 7616432, 7618935, 7618936, 7622911, 7622912
General FAQ
See All
What is immo off or immobilizer delete, and will it work for my VW or Audi?
Immobilizer delete (immo off) bypasses the immobilizer in the engine control unit (ECU) of VW and Audi vehicles. It’s used when the vehicle starts but immediately shuts down due to a fault in the immobilizer system, often with fault codes P1570 or P0513. Immo off services will not work if the vehicle does not start at all; it must start and then be shut down due to the immobilizer.
What is module cloning, and do part numbers need to match?
Module cloning involves copying all the data from one module to another, allowing the replacement to function just like the original. While it's generally recommended to match part numbers for compatibility, the necessity can vary by module. Some require exact matches, while others are more flexible and allow cloning between different part numbers. Each product listing on our website specifies the part number requirements. If you're unsure, feel free to reach out for guidance.
Do you have to open the module cases?
We only open module cases when absolutely necessary. For services that don’t require opening, we won’t open the module. However, depending on how badly damaged your original ECU is, sometimes opening the module is the only way to retrieve data. Additionally, some services don’t have a plug-in method at all and require direct access to the board, including soldering or chip replacement. The need to open modules is not specific to us but is sometimes essential depending on the condition of the ECU.
What are the shipping procedures and turn around times?
After purchasing, you will receive an email with shipping instructions. You are responsible for shipping your modules to us, and we will cover the return shipping. You can use any shipping service that is convenient for you. We typically use UPS Ground (3-5 days) for return shipping, but in some cases, we may use USPS or FedEx. Once we receive your package (shipping times depend on how quickly you ship it and the service used), we typically ship it back the next business day. Some services may require a 2-day handling time, depending on the complexity.
For detailed shipping times to and from your location, check out our shipping speed map.
What is the warranty?
We offer a 90-day warranty on programming only. This covers the accuracy of the programming performed, but does not extend to the module hardware itself.
