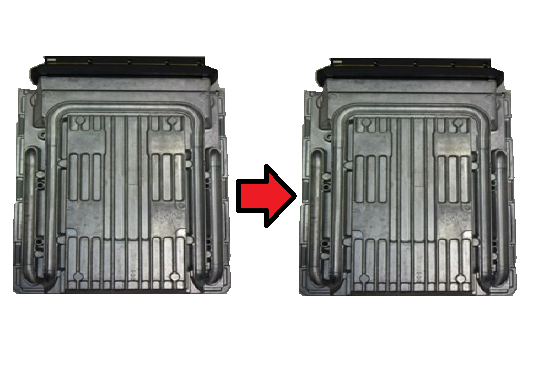

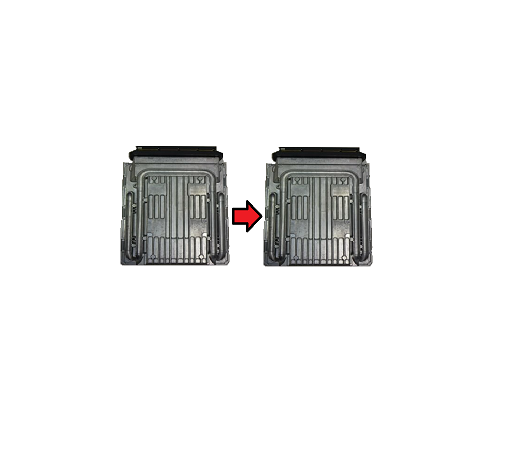

This is a mail-in DME cloning service for supported BMW vehicles equipped with MSD85, MSD85.1, MSD85.4, and MSD87 engine control modules.
We transfer the necessary vehicle-specific data from your original DME into a compatible replacement DME that you provide. The replacement retains the original vehicle's DME data and normal CAS/immobilizer synchronization, allowing it to replace the original without normal replacement-DME matching or programming.
This service is intended for replacing a faulty DME when the original module still communicates and can be successfully read.
When to Use This Service:
- Your original DME is faulty but still communicates and can be read.
- You have a compatible used replacement DME.
- You want to retain the vehicle's normal CAS and immobilizer operation.
- You need the original vehicle-specific DME data transferred into a replacement module.
What This Service Does:
- Reads the necessary data from your original DME.
- Transfers the required vehicle-specific data into your replacement DME.
- Retains the original vehicle information and immobilizer synchronization.
- Prepares the replacement DME for installation back into the vehicle.
Important Requirements:
- YOU MUST SEND BOTH DMEs — ORIGINAL AND REPLACEMENT.
- The original DME must communicate and be readable for this cloning service.
- The replacement DME must be compatible with the original.
- We recommend matching the original DME part number whenever possible.
If you are unsure whether your replacement DME is compatible, send us clear photos of both DME labels before purchasing.
Supported DME Types:
- MSD85
- MSD85.1
- MSD85.4
- MSD87
These DME families are commonly found in BMW N63 and S63 engine applications, including select BMW 5 Series, 6 Series, 7 Series, X5, and X6 vehicles.
Compatibility is determined by the DME type, hardware, part number, engine, and vehicle application, not vehicle model or model year alone.
Original DME Does Not Communicate?
This cloning service requires readable data from the original DME.
If your original DME has severe water damage, internal failure, or no communication, contact us with your vehicle information and DME part number before purchasing. Other replacement or data-recovery options may be available depending on the condition of the original DME.
Why Choose DME Cloning?
- Retains the vehicle's normal CAS/immobilizer operation.
- Transfers the original vehicle-specific DME data to the replacement.
- Avoids normal replacement-DME immobilizer matching.
- Ideal for replacing a faulty but still-readable DME.
Don’t See Your Vehicle?
Send us your vehicle information and DME part number for verification. We’re happy to assist!
Common Part Numbers
Common Part Numbers
MSD85 / MSD85.1
7558501, 7590278, 7593247, 7594355, 7601359, 7602171, 7607985, 7612802, 7624036, 7637532, 7643746, 7644075, 7649411
MSD85.3
7588186, 7604356, 7608712, 7621329, 7639217, 8603842
MSD85.0
7593708, 7600124, 7608194, 7609670, 7613202, 7633374, 7640087, 7645143, 8610680
Other MSD85
7593560, 7593707, 7593929, 7594625, 7595549, 7598345, 7603489, 7604075, 7608099, 7608398
General FAQ
See All
What is immo off or immobilizer delete, and will it work for my VW or Audi?
Immobilizer delete (immo off) bypasses the immobilizer in the engine control unit (ECU) of VW and Audi vehicles. It’s used when the vehicle starts but immediately shuts down due to a fault in the immobilizer system, often with fault codes P1570 or P0513. Immo off services will not work if the vehicle does not start at all; it must start and then be shut down due to the immobilizer.
What is module cloning, and do part numbers need to match?
Module cloning involves copying all the data from one module to another, allowing the replacement to function just like the original. While it's generally recommended to match part numbers for compatibility, the necessity can vary by module. Some require exact matches, while others are more flexible and allow cloning between different part numbers. Each product listing on our website specifies the part number requirements. If you're unsure, feel free to reach out for guidance.
Do you have to open the module cases?
We only open module cases when absolutely necessary. For services that don’t require opening, we won’t open the module. However, depending on how badly damaged your original ECU is, sometimes opening the module is the only way to retrieve data. Additionally, some services don’t have a plug-in method at all and require direct access to the board, including soldering or chip replacement. The need to open modules is not specific to us but is sometimes essential depending on the condition of the ECU.
What are the shipping procedures and turn around times?
After purchasing, you will receive an email with shipping instructions. You are responsible for shipping your modules to us, and we will cover the return shipping. You can use any shipping service that is convenient for you. We typically use UPS Ground (3-5 days) for return shipping, but in some cases, we may use USPS or FedEx. Once we receive your package (shipping times depend on how quickly you ship it and the service used), we typically ship it back the next business day. Some services may require a 2-day handling time, depending on the complexity.
For detailed shipping times to and from your location, check out our shipping speed map.
What is the warranty?
We offer a 90-day warranty on programming only. This covers the accuracy of the programming performed, but does not extend to the module hardware itself.
