Fiat 500 ECU Advanced Clone Programming Recovery Service For No OBD Communication – Dead, Burnt, or Damaged ECU

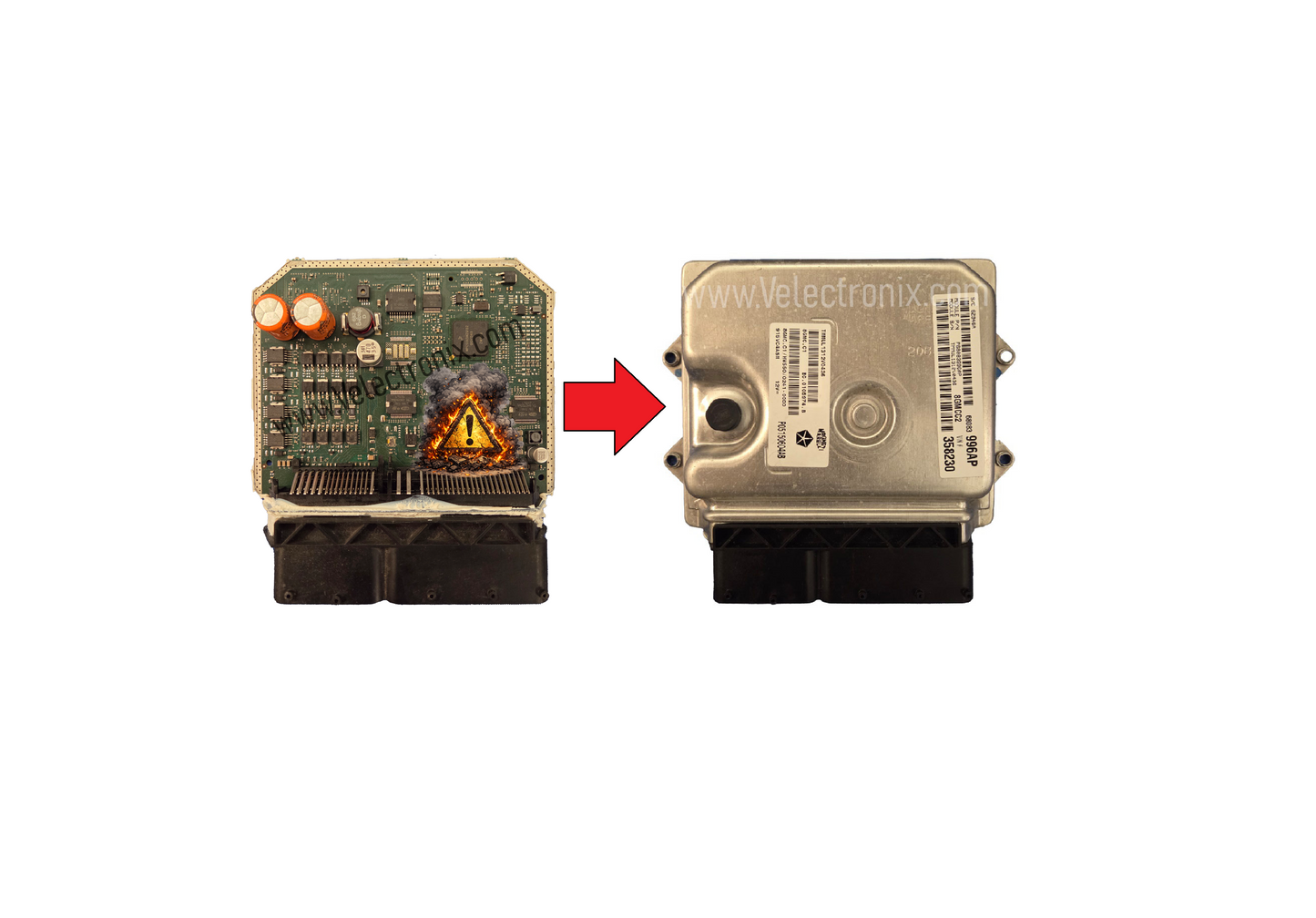

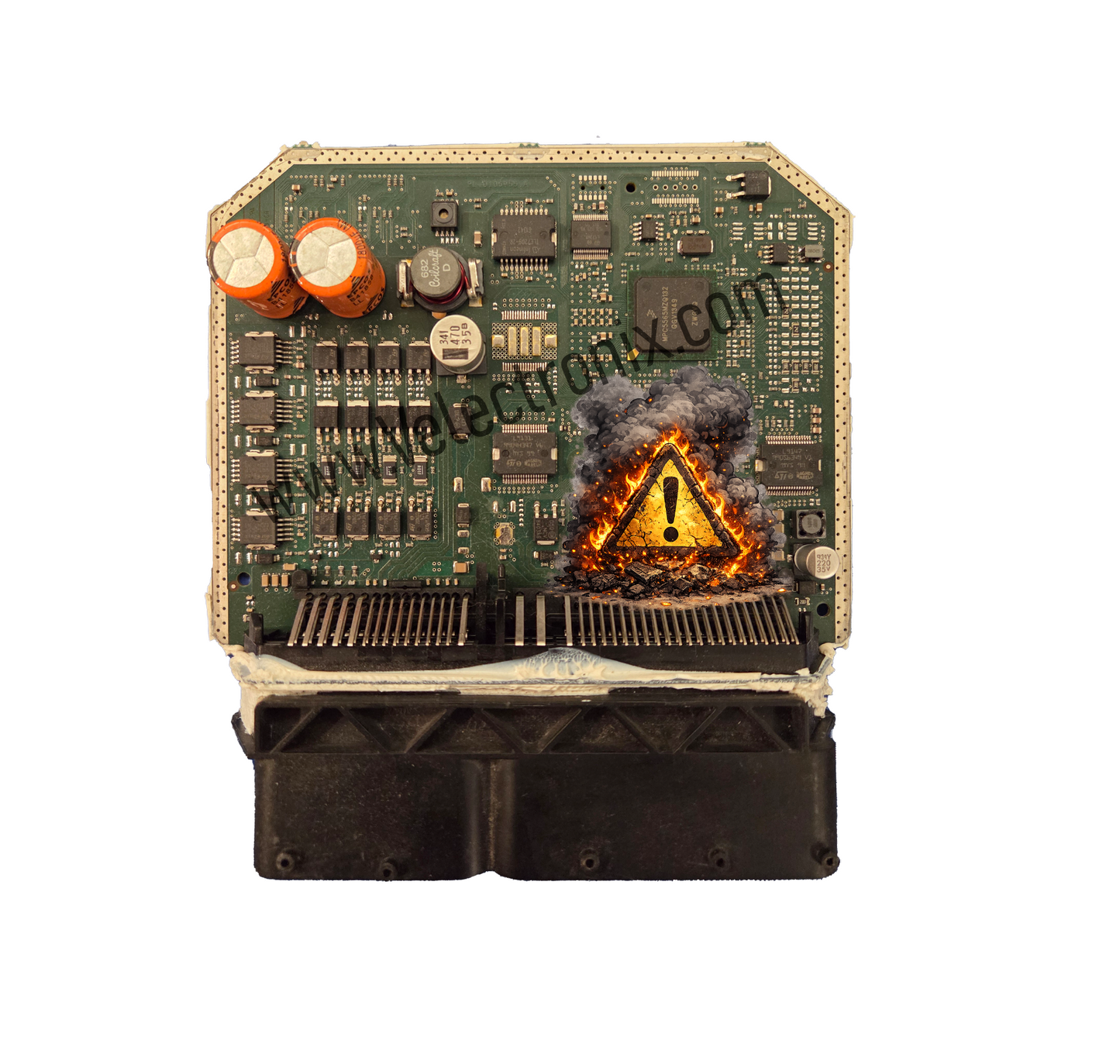

This specialized cloning & recovery service is for Fiat 500 and Fiat 124 Spider models with 1.4L Turbo engines (MultiAir Turbo) where the original ECU has lost all OBD communication (no diagnostic response) due to physical or electrical damage—such as burnt circuits, water intrusion, power surge, failed components, shorted outputs, or other hardware-level failures—but the main microcontroller chip remains intact and readable.We use advanced bench-level extraction techniques to directly pull critical data (VIN, immobilizer/security codes, coding, adaptations, software version, etc.) from the original ECU and clone it to a compatible replacement ECU you provide. The replacement unit will be fully programmed and plug-and-play, compatible with your original keys and ready to start/run the vehicle normally.This service is ONLY for hardware-damaged ECUs.
It is not suitable if the lack of OBD communication is caused by:

• Programming failure
• Interrupted flash or update attempt
• Checksum or software corruption
• Security lockout or failed write operation

In those scenarios, data extraction may be incomplete or blocked, making cloning unreliable or impossible.Key Requirements

• The original ECU must have no OBD communication due to physical/electrical damage only.
• The main processor chip must be intact and readable (we assess this upon receipt).
• You must provide:
• The faulty original ECU (no OBD comm).
• A compatible replacement/donor ECU (hardware and software numbers must match exactly or very closely—send part numbers/photos for pre-verification).
• Both units will be returned after cloning.

Supported Models & Engines

• Fiat 500 (1.4L Turbo / MultiAir Turbo): 2012–2020
• Fiat 124 Spider (1.4L Turbo / MultiAir Turbo): 2017–2020

Supported ECU Family
Bosch MED17 series (common for Fiat 1.4L MultiAir Turbo engines; part numbers typically 028101xxxx or Fiat Axxxxxx codes—exact match required)Process Overview

1. Ship both your dead original ECU and compatible replacement ECU to us.
2. We perform advanced bench extraction on the original unit.
3. Clone all necessary data to the replacement ECU.
4. Return both units (replacement ready to install; original returned for your records).

Turnaround Time
Typically 4–8 business days once received (includes inspection and cloning).Why This Service?

• Handles true dead/burnt ECUs where standard OBD-based cloning cannot be performed.
• Keeps full factory immobilizer and security functionality.
• Cost-effective alternative to new OEM ECU + dealer programming (often unavailable or expensive for these models).
• Professional data transfer with specialized equipment.

Before Shipping Please contact us first with:

• Your ECU part number (e.g., Bosch 028101xxxx or Fiat label details)
• Hardware/software codes if visible
• Brief description of the failure (e.g., “water damage, no injector power, no OBD response”)
• Photos of the unit (especially if the board is visible)

We’ll confirm eligibility and send shipping instructions/labels.Important Pricing Note
This advanced bench recovery service is priced higher than our standard OBD-based cloning due to the specialized extraction work and risk assessment required.Alternative Option
If you prefer to bypass the immobilizer entirely (or if the original ECU is unrecoverable), check our Immobilizer Off Service for Fiat 1.4L Turbo ECUs—lower priced and does not require the original unit to be readable.Message us with your ECU details before ordering to ensure compatibility and eligibility!
