Land Rover Range Rover BCM Cloning Service – L405, L494, L462, L560
Land Rover Range Rover BCM Cloning Service – L405, L494, L462, L560
Land Rover Range Rover BCM Cloning Service – L405, L494, L462, L560
This service is for select Land Rover and Range Rover vehicles equipped with the later module-style Body Control Module (BCM). We transfer the necessary vehicle-specific data from your original BCM to a replacement BCM that you provide.
The replacement module is returned prepared for installation.
Important – Module Style Only:

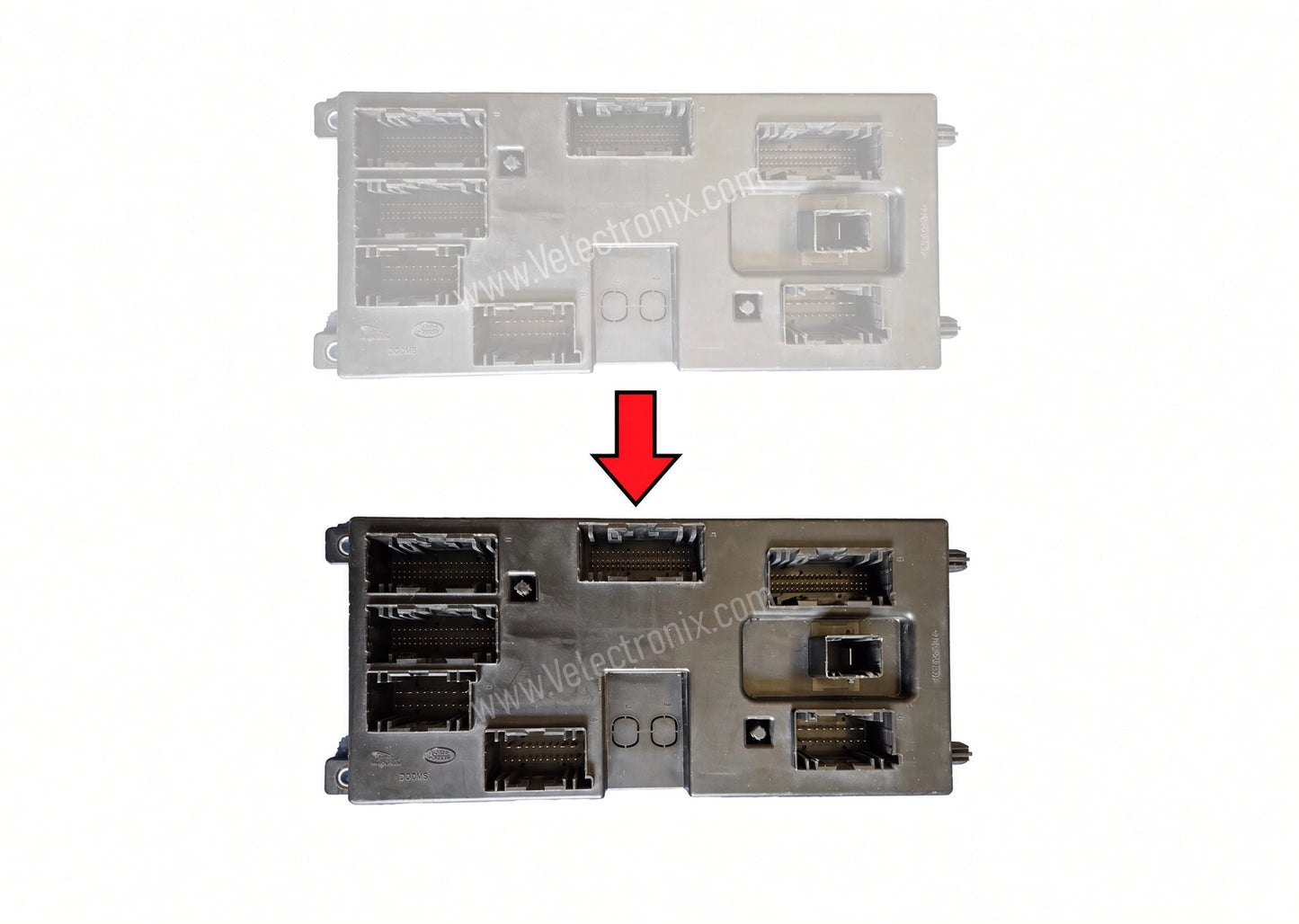

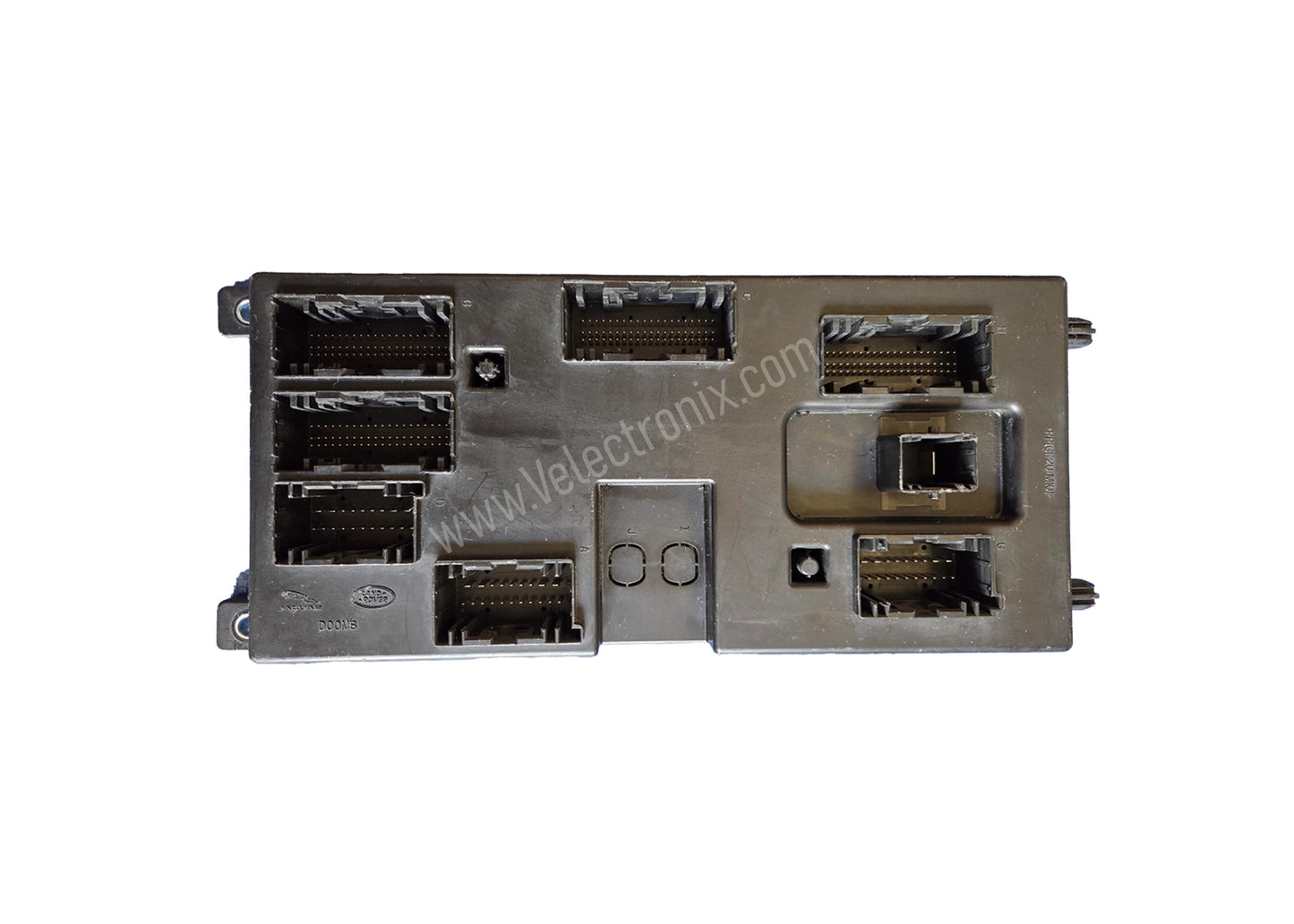

This listing is for the stand-alone module-style BCM shown in the listing photos.
These BCMs do not contain the vehicle's fuses or relays.
This service does not apply to fuse box-style CEM/BCM modules. If you are unsure which type of module you have, send us a photo before purchasing.
Supported Vehicles:
- Range Rover L405: 2017–2019
- Range Rover Sport L494: 2017–2022
- Land Rover Discovery 5 L462: 2017–2019
- Range Rover Velar L560: 2018–2020
These same module types may also be used in certain Jaguar XE, XF, and F-Pace applications. Always match the part number on the module label, not the vehicle model alone.
How It Works:
- Send us your original BCM and a replacement BCM with the same part number.
- We transfer the necessary vehicle-specific data from your original module to the replacement module you provide.
- We return both modules with the replacement prepared for installation.
Important:
- The original and replacement BCM must have matching part numbers.
- Both modules must be shipped to us for the cloning process.
- This service does not include supplying a replacement BCM.
- This service does not repair the original BCM.
- Modules may need to be opened to complete the cloning process.
- Compatibility can vary by part number and module version.
Not Sure If Your BCM Is Compatible?
Send us a clear photo of the BCM label showing the complete part number before shipping. We can verify the module before you purchase.
This product description is original content.
Unauthorized copying, scraping, or reproduction is prohibited.
Protection ID: VELECTRONIX-ORIGINAL-CONTENT-2026-V1
Common Part Numbers
Common Part Numbers
HPLA-14F041-BG
GX73-14F041-AL
GX73-14F041-AK / GX7314F041AK
JPLA-14F041-BF
LR081506
LR110262
LR123902
T4A14243
T2H21199
& More!
General FAQ
See All
What is immo off or immobilizer delete, and will it work for my VW or Audi?
Immobilizer delete (immo off) bypasses the immobilizer in the engine control unit (ECU) of VW and Audi vehicles. It’s used when the vehicle starts but immediately shuts down due to a fault in the immobilizer system, often with fault codes P1570 or P0513. Immo off services will not work if the vehicle does not start at all; it must start and then be shut down due to the immobilizer.
What is module cloning, and do part numbers need to match?
Module cloning involves copying all the data from one module to another, allowing the replacement to function just like the original. While it's generally recommended to match part numbers for compatibility, the necessity can vary by module. Some require exact matches, while others are more flexible and allow cloning between different part numbers. Each product listing on our website specifies the part number requirements. If you're unsure, feel free to reach out for guidance.
Do you have to open the module cases?
We only open module cases when absolutely necessary. For services that don’t require opening, we won’t open the module. However, depending on how badly damaged your original ECU is, sometimes opening the module is the only way to retrieve data. Additionally, some services don’t have a plug-in method at all and require direct access to the board, including soldering or chip replacement. The need to open modules is not specific to us but is sometimes essential depending on the condition of the ECU.
What are the shipping procedures and turn around times?
After purchasing, you will receive an email with shipping instructions. You are responsible for shipping your modules to us, and we will cover the return shipping. You can use any shipping service that is convenient for you. We typically use UPS Ground (3-5 days) for return shipping, but in some cases, we may use USPS or FedEx. Once we receive your package (shipping times depend on how quickly you ship it and the service used), we typically ship it back the next business day. Some services may require a 2-day handling time, depending on the complexity.
For detailed shipping times to and from your location, check out our shipping speed map.
What is the warranty?
We offer a 90-day warranty on programming only. This covers the accuracy of the programming performed, but does not extend to the module hardware itself.
