BMW KBM BCM Body / Gateway Module Clone Programming Service
E60 / E61 5 Series • E63 / E64 6 Series
Service Description

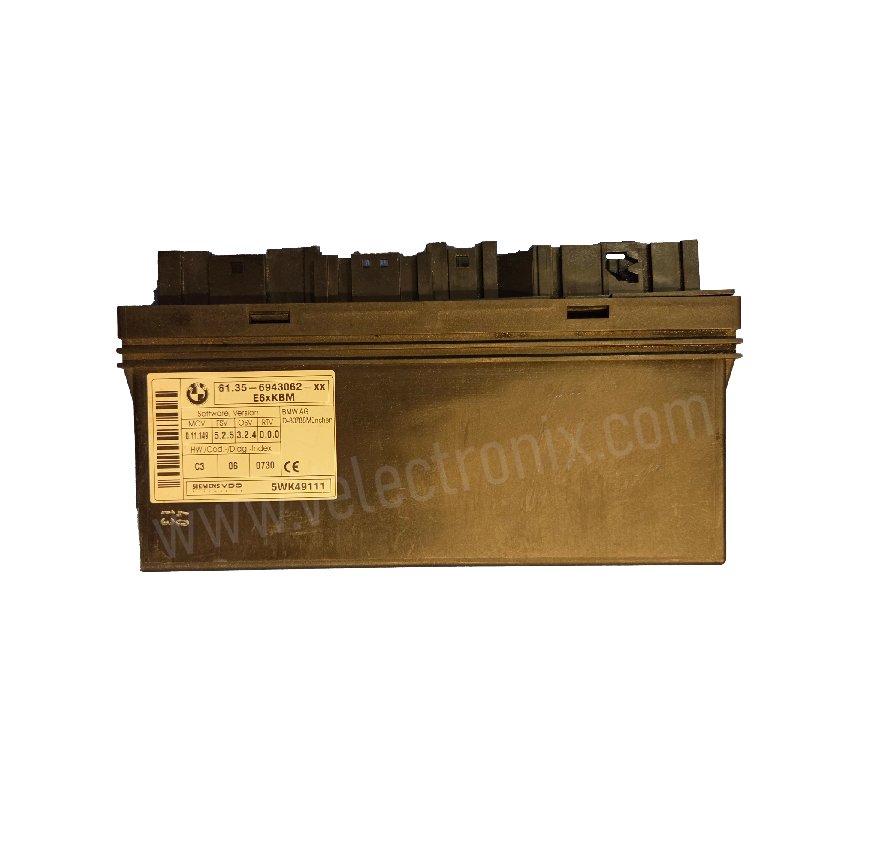

This service provides professional clone programming for the BMW KBM (Karosseriemodul / Basic Body Module), also commonly referred to as the Gateway Body Control Module, used in E60/E61/E63/E64 chassis vehicles.

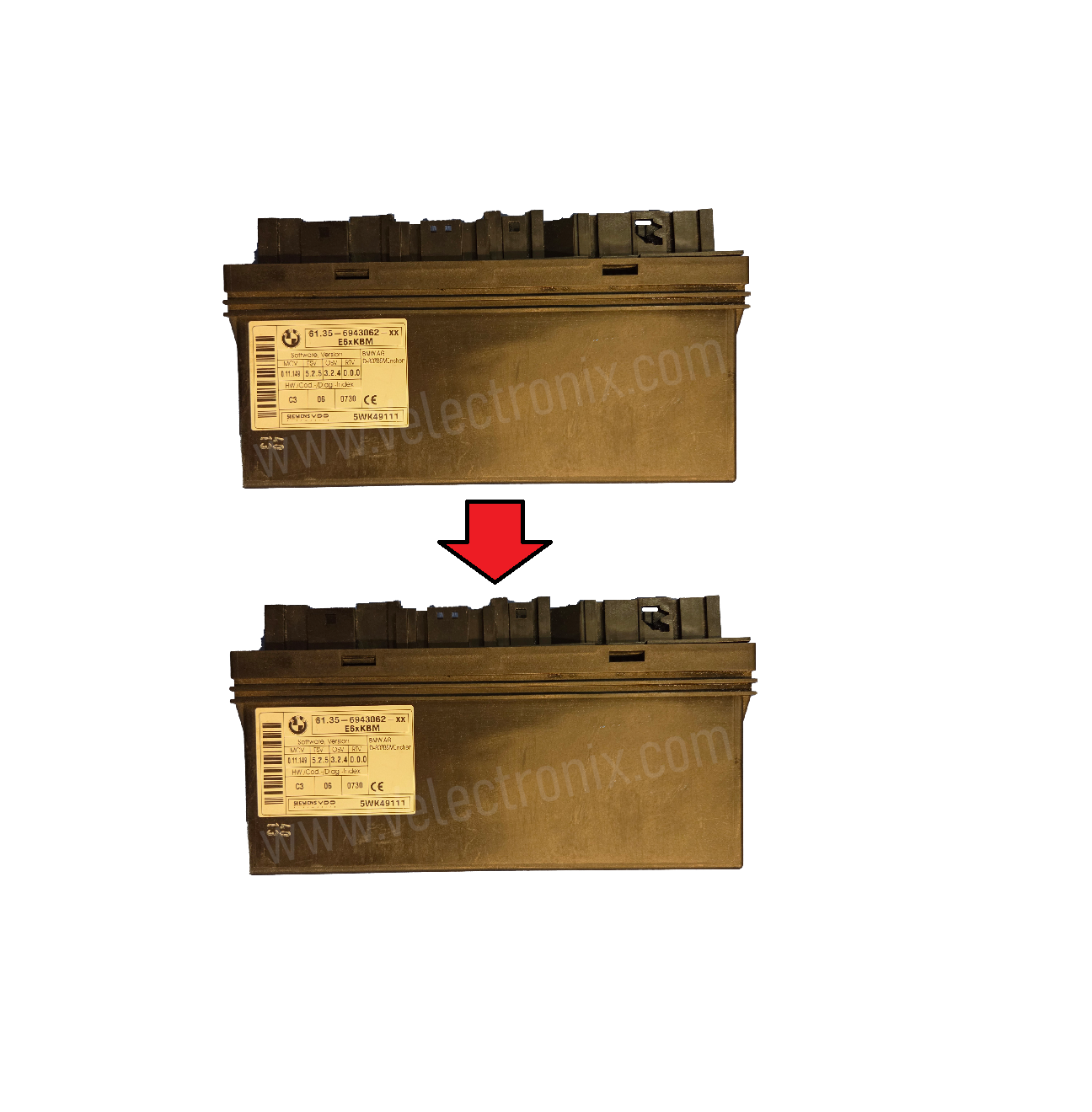

Cloning allows you to replace a faulty KBM without dealer coding, VIN alignment, or reconfiguration. We copy all vehicle-specific data from your original factory KBM and transfer it into a replacement module with the exact same part number, preserving your vehicle’s original configuration.
The programmed replacement is returned plug-and-play, functioning identically to the original module with all factory settings retained.
What This Service Transfers
This cloning process transfers vehicle-specific configuration data, including but not limited to:
- Power window operation (including rear window behavior)
- Interior and exterior lighting configuration
- Wiper and washer functions
- Central locking and comfort features
- Mirror functions and convenience options
- KBM gateway communication and CAN integration
- Other KBM-controlled body electronics and settings
All original coding, adaptations, and option data are preserved.
Important Notes
- Exact KBM part number match is REQUIRED for compatibility and successful cloning
- Both the original and replacement KBM must be shipped to us
- The programmed replacement module is returned ready for installation
(original module returned upon request)
Supported Vehicles & Compatibility
This service applies to KBM modules used in the following BMW chassis families.
Exact KBM part number verification is required for all vehicles listed below.
BMW 5 Series
- E60 Sedan / E61 Touring
- Model Years: 2003–2010 (Pre-LCI and LCI)
- Common trims: 520i, 523i, 525i, 528i, 530i, 535i, 545i, 550i, M5
- Diesel variants: 520d, 525d, 530d, 535d
BMW 6 Series
- E63 Coupe / E64 Convertible
- Model Years: 2003–2010
- Common trims: 630i, 645Ci, 650i, M6
Other E6x derivatives may apply with an exact KBM part number match.
Module Names / Common References
The KBM may also be listed or referred to as:
- KBM (Karosseriemodul / Basic Body Module – BMW terminology)
- Gateway Body Control Module
- Body Gateway Module
- Basis Body Module
- Body Control Module (BCM – aftermarket reference)
Requirements
- Ship both your original KBM and a replacement KBM with the exact same part number
Common KBM Part Numbers
This service commonly applies to KBM modules with part numbers such as (examples only):
- 61 35 6 943 062 / 61356943062
- 61 35 6 917 6069 / 61359176069
- 61 35 6 916 8833 / 61359168833
- 61 35 6 937 8713 / 61359378713
- 61 35 6 915 1516 / 61359151516
- 61 35 6 957 140 / 6135957140
- 61 35 6 969 011 / 6135969011
- 61 35 6 937 400 (short forms such as 6937400, 6943062)
Part numbers listed are examples only. BMW uses multiple supersessions — the replacement module must match exactly.
Don’t see your part number listed? Contact us before purchasing.
General FAQ
See All
What is immo off or immobilizer delete, and will it work for my VW or Audi?
Immobilizer delete (immo off) bypasses the immobilizer in the engine control unit (ECU) of VW and Audi vehicles. It’s used when the vehicle starts but immediately shuts down due to a fault in the immobilizer system, often with fault codes P1570 or P0513. Immo off services will not work if the vehicle does not start at all; it must start and then be shut down due to the immobilizer.
What is module cloning, and do part numbers need to match?
Module cloning involves copying all the data from one module to another, allowing the replacement to function just like the original. While it's generally recommended to match part numbers for compatibility, the necessity can vary by module. Some require exact matches, while others are more flexible and allow cloning between different part numbers. Each product listing on our website specifies the part number requirements. If you're unsure, feel free to reach out for guidance.
Do you have to open the module cases?
We only open module cases when absolutely necessary. For services that don’t require opening, we won’t open the module. However, depending on how badly damaged your original ECU is, sometimes opening the module is the only way to retrieve data. Additionally, some services don’t have a plug-in method at all and require direct access to the board, including soldering or chip replacement. The need to open modules is not specific to us but is sometimes essential depending on the condition of the ECU.
What are the shipping procedures and turn around times?
After purchasing, you will receive an email with shipping instructions. You are responsible for shipping your modules to us, and we will cover the return shipping. You can use any shipping service that is convenient for you. We typically use UPS Ground (3-5 days) for return shipping, but in some cases, we may use USPS or FedEx. Once we receive your package (shipping times depend on how quickly you ship it and the service used), we typically ship it back the next business day. Some services may require a 2-day handling time, depending on the complexity.
For detailed shipping times to and from your location, check out our shipping speed map.
What is the warranty?
We offer a 90-day warranty on programming only. This covers the accuracy of the programming performed, but does not extend to the module hardware itself.
