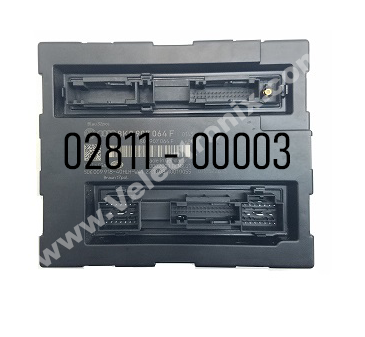

Audi BCM2 / J393 Module Repair Service
This is a mail-in BCM2 repair service for select Audi vehicles equipped with supported BCM2 modules.
This service is intended for BCM2 modules suffering from internal software faults and data corruption that can cause starting problems, steering lock faults, ignition lock warnings, or internal control module errors.
We repair supported BCM2 1.1 and BCM2 2.0 modules while retaining the original vehicle-specific data, allowing the repaired module to be reinstalled into the original vehicle without replacement-module programming.
YOU MUST SEND YOUR ORIGINAL BCM2 MODULE AND VEHICLE KEY.
SUPPORTED BCM2 MODULES
This service supports select Audi BCM2 1.1 and BCM2 2.0 modules, including:
- 8K0 907 064 series
- 4H0 907 064 series
This service does not cover the later 8W0 / BCM2 MLBevo module generation.
Compatibility is determined by the BCM2 part number and module type. Vehicle year alone should not be used to determine compatibility.
COMMON DTCs AND FAULTS
This service is intended for supported BCM2 internal faults, including:
- 02811 – Control Module for Electronic Steering Column Lock (J764)
- 00003 – Control Module Error / Defective
- 16366 – Internal Malfunction / CPU 2
- 16344 – RAM Error
- 16346 – ROM Error
- 16347 – EEPROM Error
- 16349 – Watchdog Timer
- 16355 – Watchdog Timer
- Ignition Lock Defective dashboard warning associated with a BCM2 fault
TYPICAL SYMPTOMS
- Vehicle does not start due to a BCM2-related fault
- Intermittent starting problems
- Electronic steering lock faults
- Ignition Lock Defective warning on the instrument cluster
- Internal BCM2 control module fault codes
These symptoms can also be caused by other vehicle faults. This service repairs supported faults within the BCM2 and is not a general vehicle diagnostic service.
IMPORTANT NOTES
- BCM2 and Key Required: You must send your original BCM2 module and vehicle key for this repair service.
- Original Module Repair: This service repairs your original BCM2. A replacement module is not required for the standard repair service.
- Software / Data Faults: This service is primarily intended for internal BCM2 software and data-related faults.
- Physical Damage: Water damage, corrosion, burns, severe electrical damage, or previous repair attempts may require additional work or may prevent successful repair.
- ELV / Steering Lock: If the fault involves the Electronic Steering Lock (ELV / J764), additional service may be required depending on the condition of the BCM2 and steering lock system.
SUPPORTED AUDI MODELS
Applications include select:
- Audi A4 / S4 / RS4 – B8 / B8.5
- Audi A5 / S5 / RS5 – 8T / 8F
- Audi Q5 / SQ5 – 8R
- Audi A6 / S6 / RS6 – C7 / 4G
- Audi A7 / S7 / RS7 – 4G
- Audi A8 / S8 – D4 / 4H
Applications vary by model year, production date, and BCM2 part number. This service is intended for supported 8K0 and 4H0 BCM2 modules and does not include the later 8W0 / MLBevo generation.
WHAT TO SEND
- Your original BCM2 module
- Your vehicle key
Please include the fault codes or symptoms that led to the BCM2 diagnosis.
TURNAROUND TIME
Typical turnaround time is 1–2 business days after we receive your module.
Additional processing time may be required for physically damaged modules or modules that have been previously repaired or modified.
Return shipping within the contiguous United States is included.
NOT SURE IF YOUR BCM2 IS SUPPORTED?
Send us the part number from your BCM2 along with the fault codes before ordering and we can confirm whether this repair service is appropriate for your module.
This is a mail-in repair service. No replacement BCM2 is included.
This product description is original content.
Unauthorized copying, scraping, or reproduction is prohibited.
Protection ID: VELECTRONIX-ORIGINAL-CONTENT-2026-V1
Common Part Numbers
Common Part Numbers
8K0 907 064 CS
8K0 907 064 CT
8K0 907 064 CQ
8K0 907 064 KP
8K0 907 064 GM
8K0 907 064 GL
8K0 907 064 GP
8K0 907 064 CF
8K0 907 064 CP
8K0 907 064 EE
8K0 907 064 AG
8K0 907 064 AH
8K0 907 064 AL
8K0 907 064 AS
8K0 907 064 BS
8K0 907 064 DS
8K0 907 064 EP
8K0 907 064 FP
8K0 907 064 N
4H0 907 064 JD
4H0 907 064 GB
4H0 907 064 HB
4H0 907 064 ER
4H0 907 064 HP
4H0 907 064 FP
4H0 907 064 FH
4H0 907 064 BC
4H0 907 064 BR
4H0 907 064 AQ
4H0 907 064 AD
4H0 907 064 BD
4H0 907 064 CD
4H0 907 064 CJ
4H0 907 064 ED
General FAQ
See All
What is immo off or immobilizer delete, and will it work for my VW or Audi?
Immobilizer delete (immo off) bypasses the immobilizer in the engine control unit (ECU) of VW and Audi vehicles. It’s used when the vehicle starts but immediately shuts down due to a fault in the immobilizer system, often with fault codes P1570 or P0513. Immo off services will not work if the vehicle does not start at all; it must start and then be shut down due to the immobilizer.
What is module cloning, and do part numbers need to match?
Module cloning involves copying all the data from one module to another, allowing the replacement to function just like the original. While it's generally recommended to match part numbers for compatibility, the necessity can vary by module. Some require exact matches, while others are more flexible and allow cloning between different part numbers. Each product listing on our website specifies the part number requirements. If you're unsure, feel free to reach out for guidance.
Do you have to open the module cases?
We only open module cases when absolutely necessary. For services that don’t require opening, we won’t open the module. However, depending on how badly damaged your original ECU is, sometimes opening the module is the only way to retrieve data. Additionally, some services don’t have a plug-in method at all and require direct access to the board, including soldering or chip replacement. The need to open modules is not specific to us but is sometimes essential depending on the condition of the ECU.
What are the shipping procedures and turn around times?
After purchasing, you will receive an email with shipping instructions. You are responsible for shipping your modules to us, and we will cover the return shipping. You can use any shipping service that is convenient for you. We typically use UPS Ground (3-5 days) for return shipping, but in some cases, we may use USPS or FedEx. Once we receive your package (shipping times depend on how quickly you ship it and the service used), we typically ship it back the next business day. Some services may require a 2-day handling time, depending on the complexity.
For detailed shipping times to and from your location, check out our shipping speed map.
What is the warranty?
We offer a 90-day warranty on programming only. This covers the accuracy of the programming performed, but does not extend to the module hardware itself.
